What function does each color serve on the Redline Triple LED Tailgate Bar for hard-wiring?

Home > Redline LED Tailgate Bar Series > Frequently Asked Questions > What function does each color serve on the Redline Triple LED Tailgate Bar for hard-wiring?

Here is a detail description of the color for the REDLINE TRIPLE LED TAILGATE BAR:

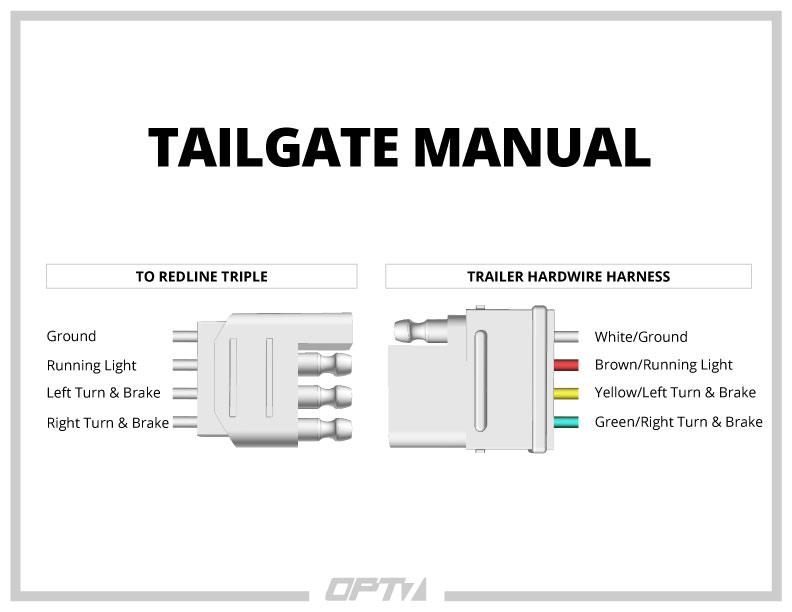

Hard-wire Harness:
White: Ground
Brown: Running light/parking light
Yellow/Green: Left/ right signal when 12V pulse signal is sent. Brake signal when constant 12V is sent.
