What function does each color pin serve on the Redline Triple Tailgate Bar with Hard Wire Harnesss?

Home > Redline LED Tailgate Bar Series > Redline Triple Tailgate LED Bar > What function does each color pin serve on the Redline Triple Tailgate Bar with Hard Wire Harnesss?

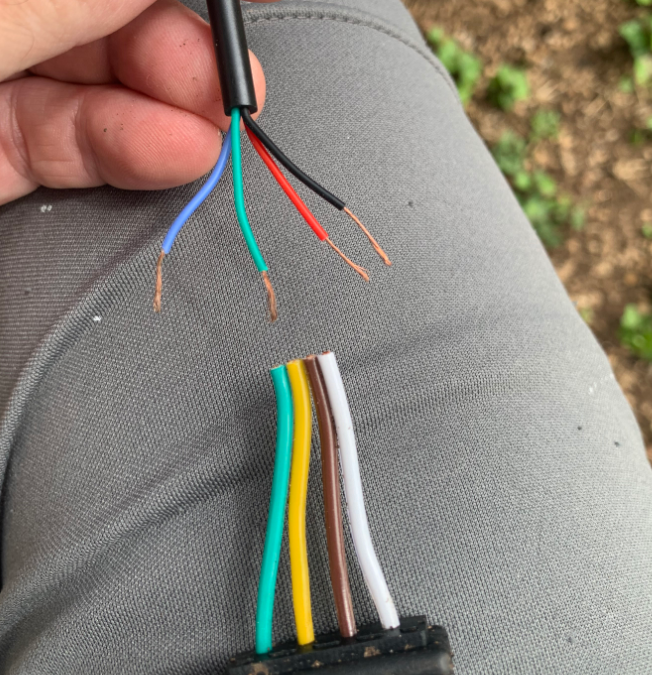

1. Blue - White  (Ground)
2. Green - Brown (Parking / Running Lights)
3. Red - Yellow  (Left Turn signal and Brake)
4. Black - Green  (Right Turn signal and Brake)
